8310 Walkie Pallet Truck Electric Pallet Jack

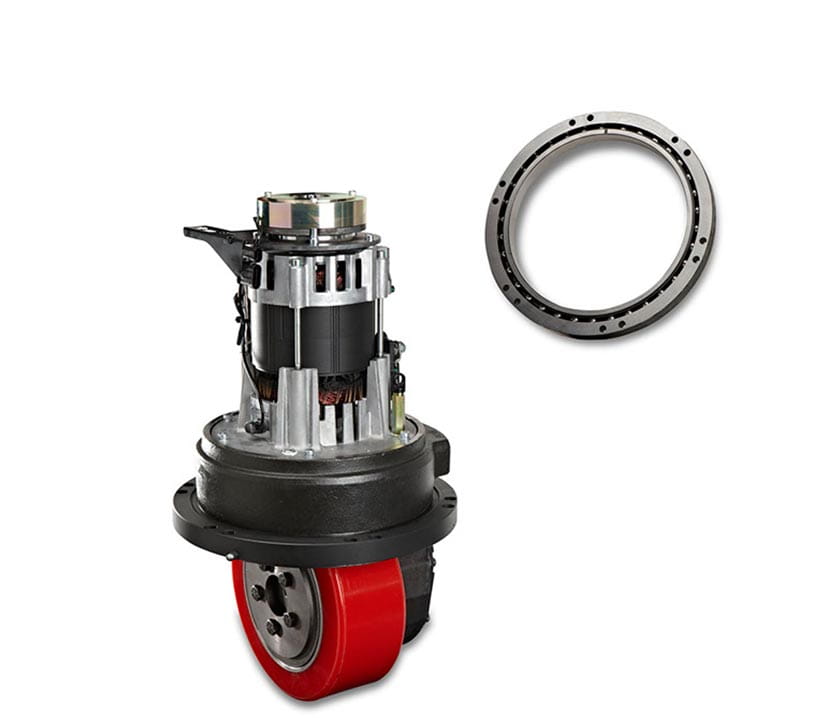

  • Raymond 8310 Walkie Pallet Truck ACR system
    Raymond lift trucks are engineered for Eco-Performance

    ACR System

    Delivers energy efficiency and productivity for longer battery life, quick and smooth acceleration, and less downtime.
    ACR System

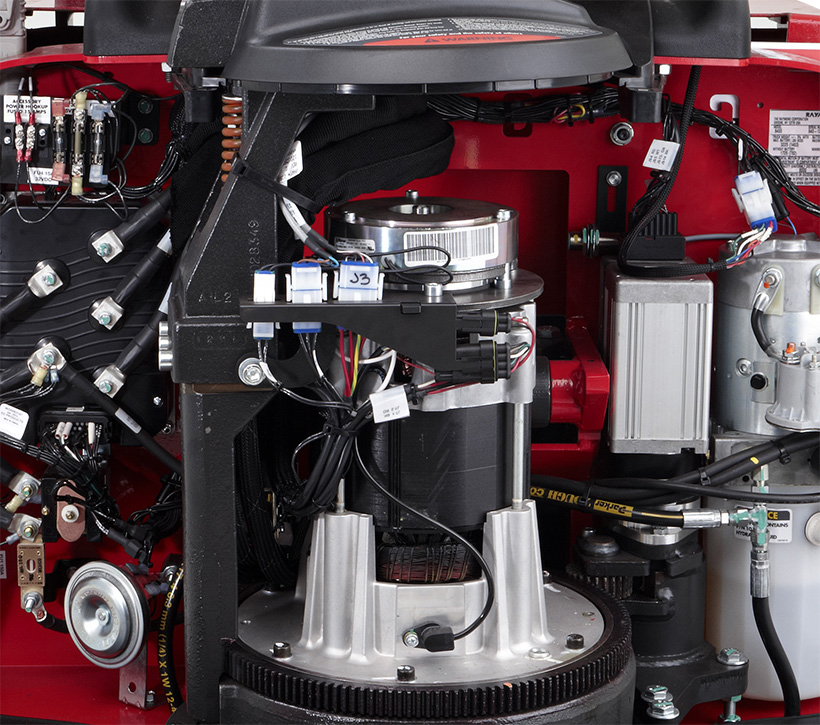

  • Raymond Pallet Truck AC Motor System
    Raymond lift trucks are designed for ease of maintenance

    Advanced Engineering

    Thoughtfully designed with fewer and longer-lasting components that require less maintenance, sourced from world-class suppliers.
    Advanced Engineering

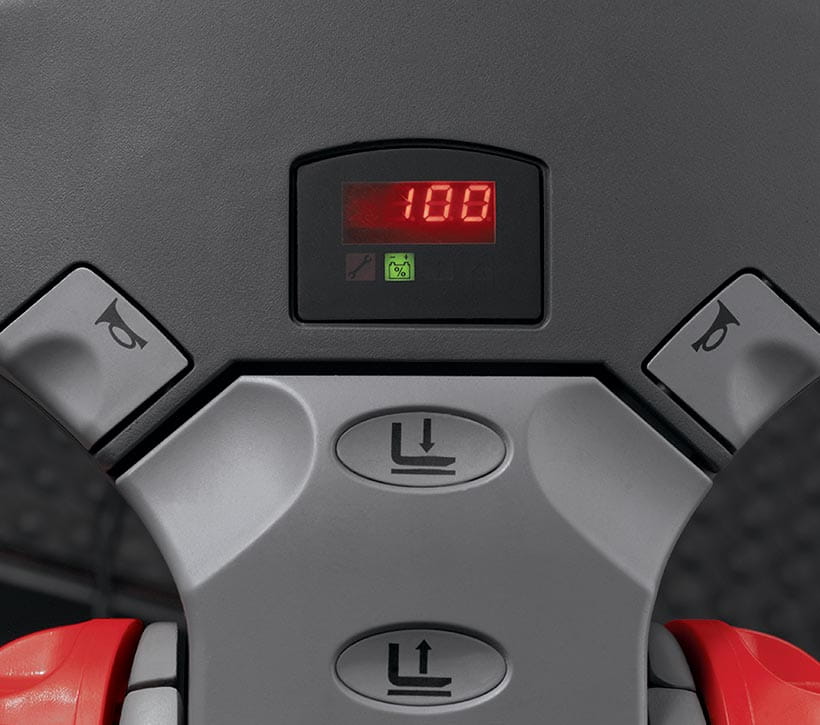

  • Raymond 8310 Walkie Pallet Truck Battery Discharge Indicator
    Raymond lift trucks are engineered for Eco-Performance

    Battery Discharge Indicator

    Battery Discharge Indicator with lift interrupt minimizes the possibility of component and battery damage due to operation at low voltage levels.
    Battery Discharge Indicator

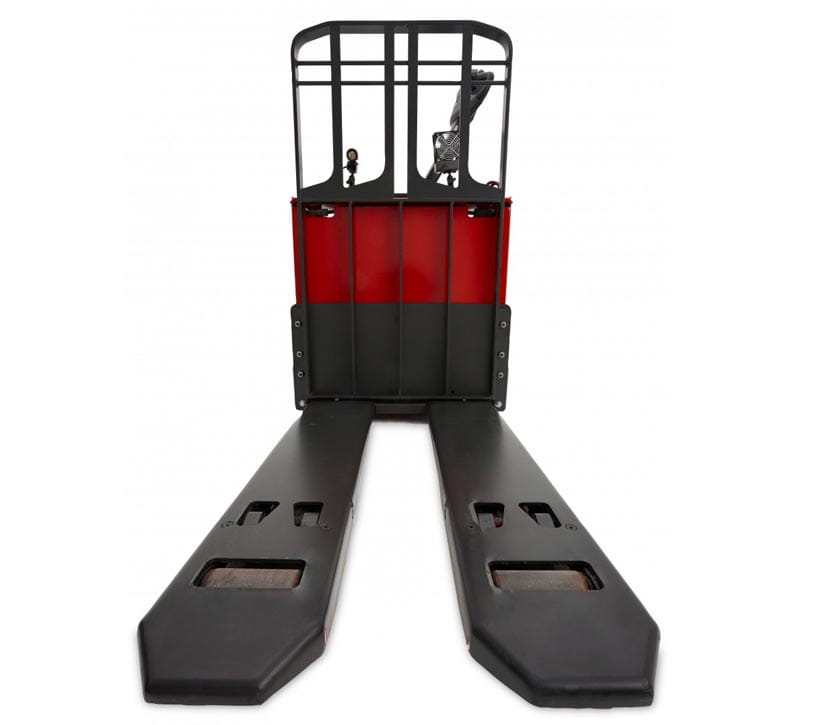

  • Raymond 8310 Walkie Pallet Truck Durable Forks
    Raymond engineers productive lift trucks

    Sturdy Forks

    Ideal for heavy-duty dock applications; available in single and double lengths with capacities up to 8,000 lbs.
    Sturdy Forks

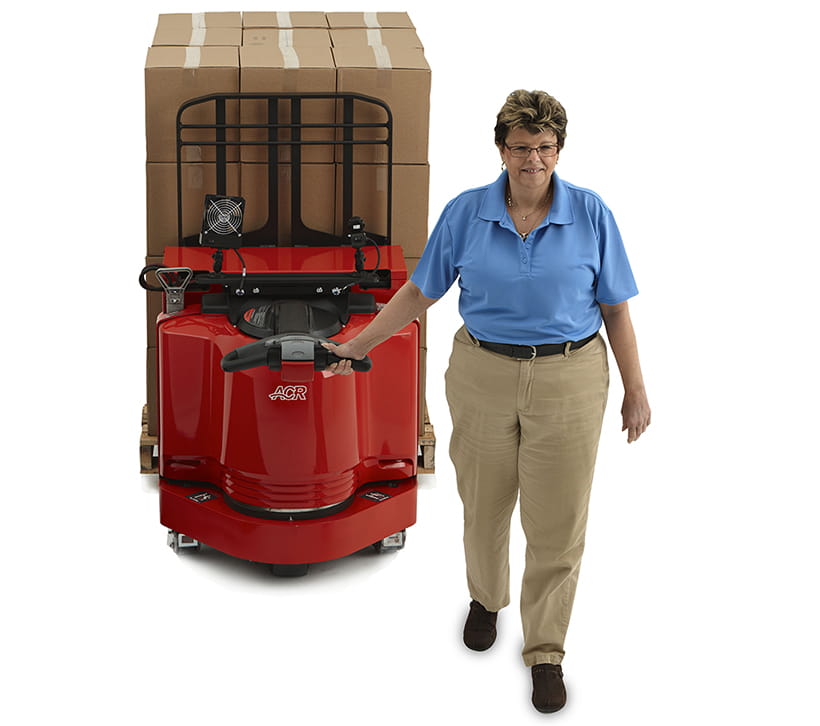

  • Raymond 8310 walkie pallet truck in operation
    Raymond engineers productive lift trucks

    Peak Performance

    Programmable performance features deliver speed and precision, with settings that can be tailored to the operator and the application.
    Peak Performance

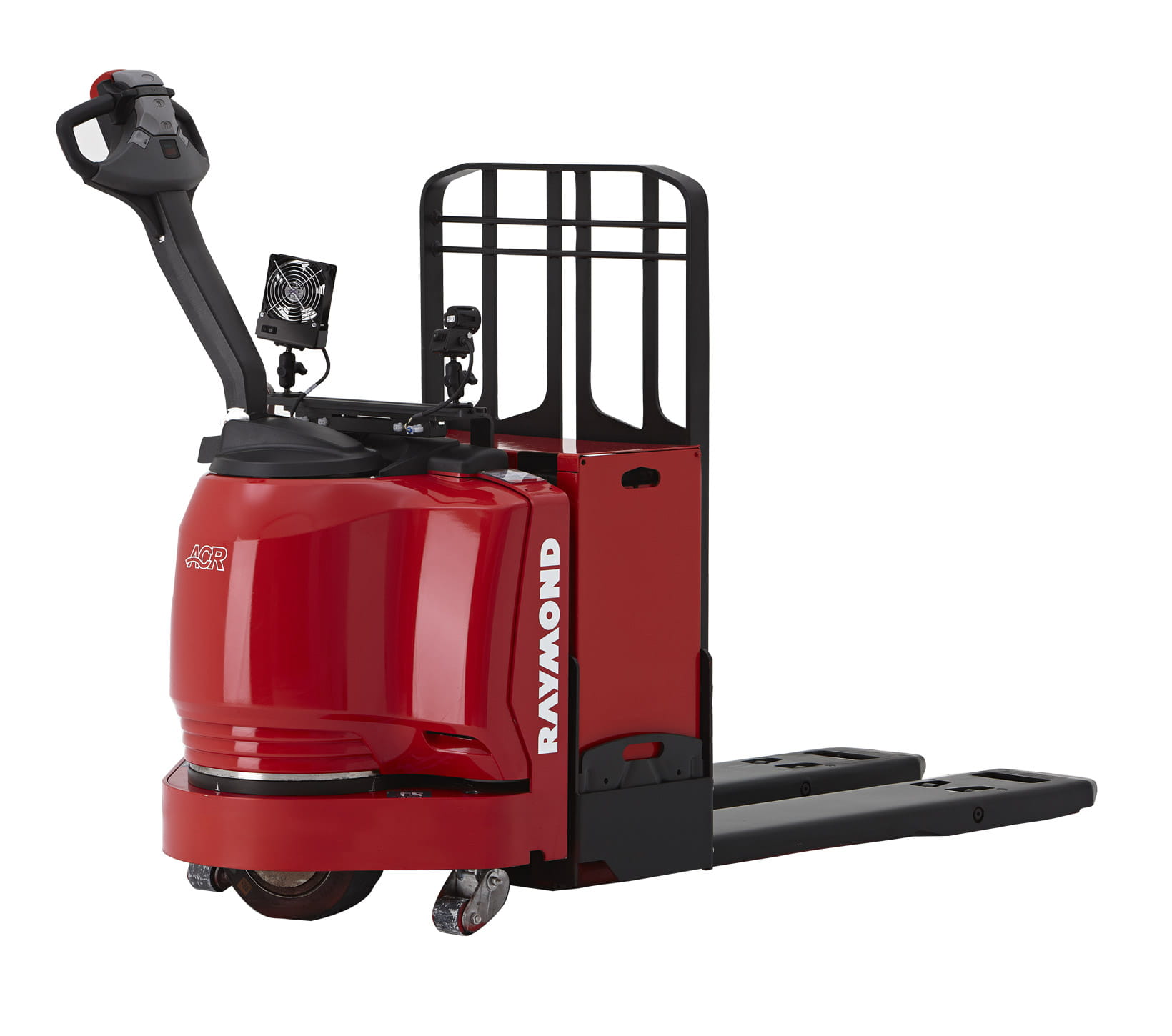

Pallet Handling Workhorse

The 8310 walkie pallet jack is a durable workhorse designed to load and unload trailers with ease in heavy-duty applications. With ergonomic controls, sturdy forks and durable construction throughout, your operators will move pallets with ease. Customize with extreme environment and cold storage packages.
  • Battery: 24 volt
  • Capacity: 6,000 lbs. or 8,000 lbs.
  • Fork Length: Available in multiple lengths and widths
  • Loaded Travel Speed: 3.9 mph
  • Unloaded Travel Speed: 3.9 mph

Built to Perform

  • Raymond 8510 Center Riding Pallet Truck Wheel

    Lift and Go Programmability

    Raymond’s exclusive programmable feature lets you reduce travel speed to train operators to travel with forks elevated to prevent unnecessary wear to the undercarriage over dock plates.
  • Raymond 8310 Walkie Pallet Truck Heavy-Duty casters

    Designed for Maximum Workload

    From the heavy-duty undercarriage to the rugged polymer cover that won’t rust, fade or dent, the 8310 walkie pallet jack is built with the right materials for the job.
  • Raymond 8510 Center Riding Pallet Truck Electric Brake

    Smarter Components

    Stand up to tougher applications longer — from Hall Effect Sensors, which replace potentiometers that wear and require replacement, to electric brakes that minimize moving parts.
  • Raymond 8310 Walkie Pallet Truck Removable Cover Access

    Efficient by Design

    Raymond sources best-in-class components, then fine-tunes and calibrates them for peak performance, for longer component and vehicle life. A lightweight yet resilient cover and a durable drive motor are key factors in our efficient performance.
  • Raymond 8000 Series Pallet Trucks AC Motor

    Greater Energy Efficiency

    The ACR System and right-sized drive motor deliver longer battery run time, fewer battery changes over the course of a shift, less batteries required overall, and lower costs for your operations.
  • Raymond 8310 Walkie Pallet Truck Ergonomic Control Handle

    Comfortable Handle

    The intuitive control handle is engineered to fit a wide range of operator sizes with easy-to-reach controls.
  • Raymond 8310 Walkie Pallet Truck Handle

    Thumb Wheel Controls

    Conveniently located thumb wheels control the truck’s direction and speed when traveling both fork first and tractor first. This allows one-handed operation for forward, reverse, lift, lower or horn.
  • Raymond 8510 Center Riding Pallet Truck Handle Wiring Assembly

    Easy to Maintain

    CanBus technology in the handle eliminates up to 40% of wiring, composite bushings never require greasing, the drive tire can be easily changed out in just minutes, and the durable yet lightweight cover provides convenient service access.
  • Raymond 8310 Walkie Pallet Truck heavy-duty undercarriage construction

    Heavy-Duty Components

    From the strong tail fork castings to the steel reinforced battery box and durable drive motor, the 8310 walkie pallet truck is built with heavy-duty, long-lasting components that are engineered to handle your heaviest loads.
  • Raymond 8000 Series Pallet Trucks Stainless Steel Pins

    Stainless Pins

    Ensure longer component life and easier maintenance. Rust and corrosion are common with standard steel pins, which can greatly impact serviceability of the undercarriage. Raymond pallet jacks feature stainless pins, which in many cases extends the life of the bushings and undercarriage assembly.
  • Raymond 8310 Walkie Pallet Truck tapered fork profile

    Smooth Pallet Entry

    Tapered forks are designed for easy pallet entry and exit, for a smoother transition in and out of pallets, with a streamlined fork thickness for better clearance.
  • Raymond 8310 Walkie Pallet Truck with Operator

    Smooth, Precise Control

    Maneuver busy dock areas and in trailers with ease and smooth, controlled operation at all speeds.
  • Raymond 8310 Walkie Pallet Truck with Operator

    Industry-Leading Speeds

    Programmable travel speeds and quick acceleration boost operators' productivity, allowing them to move more pallets per hour.
  • Raymond 8310 Walkie Pallet Truck Accessory e-Bar

    Accessory Bar

    Interfaces with any RAM-mounted accessories to put additional tools at the operators' fingertips; available with optional work light and fan.
  • Raymond 8310 Walkie Pallet Truck Pin Code Pad

    PIN Code Pad

    The optional personal identification number (PIN) code pad provides password protection for additional security. Store up to 10 different passwords to prevent unauthorized operation.
  • Raymond 8310 Walkie Pallet Truck Storage Tote

    Large Storage Tote

    An optional tote helps keep work tools organized and at your operators' fingertips for added convenience and productivity throughout the shift.
  • Raymond 8310 Walkie Pallet Truck Extreme Environment Corrosion Package

    Extreme-Environment Corrosion Protection

    Hot-dip galvanization of the truck frame, battery box, forks and undercarriage extends the life of trucks in wet, corrosive environments. Ideal for processing applications or other environments subject to harsh conditions or frequent washdowns.
  • Raymond 8310 Walkie Pallet Truck Casters

    Spring-Loaded Casters

    Ensure superior load handling — smooth, controlled operation and enhanced operator comfort when transporting a load.
  • Truck Loading and Unloading

    Improve your dock operation productivity with Raymond pallet jacks. Our electric pallet trucks are ideal for breakdown of pallets removed from trailers, long runs to P&D stations, or a combination of both, offering a wide variety of operating positions that are engineered to enhance driver comfort and minimize fatigue for this specific application.

  • Processing Environments

    Trucks used in processing applications where there are wet, caustic and briny conditions can be protected from moisture and can flush contaminants with Raymond's extreme-environment corrosion package (EECP).

  • UL EE Applications

    This lift truck complies with Underwriters Laboratories (UL) 583. Raymond Type E and EE trucks are UL tested and UL-certified and designed and manufactured to operate in classified locations as defined in NFPA 505.

  • 8000 Series Pallet Trucks Video

    From the heavy-duty undercarriage to the rugged polymer cover that won't rust, fade or dent, Raymond pallet jacks are built with the right material for the job. With fewer and longer lasting components that require less maintenance, and engineered to handle high volume dock work, horizontal transportation and low-level order picking with ease.
