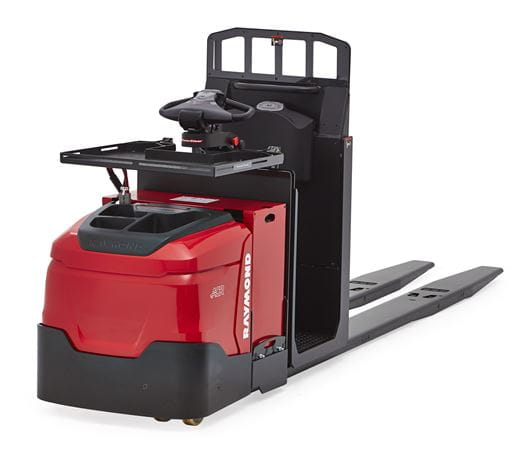

8720 2nd Level Order Picker Pallet Jack
-
-

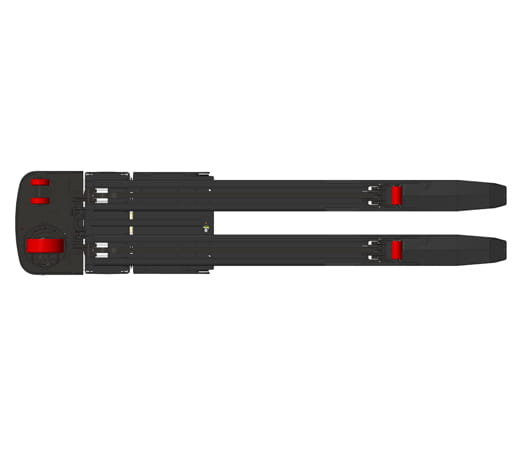

4-Point Enhanced Stability Design
Incorporates an offset drive unit with heavy duty fixed caster to provide rock solid stability when elevated or traveling at height for increased operator comfort and confidence.4-Point Enhanced Stability Design -

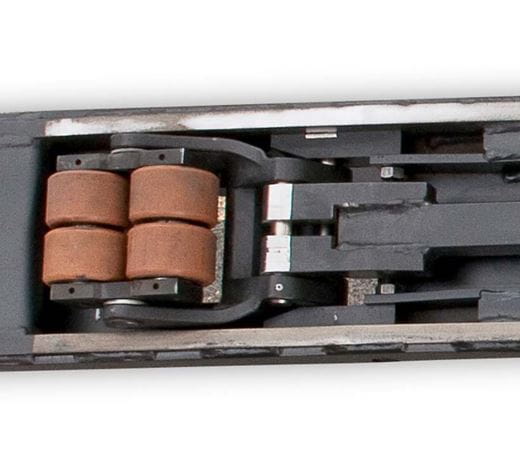

Ductile Iron Undercarriage Components
Provides the utmost durability, coupled with a heavy-duty fork frame that adds strength and support to a rugged design.Ductile Iron Undercarriage Components -

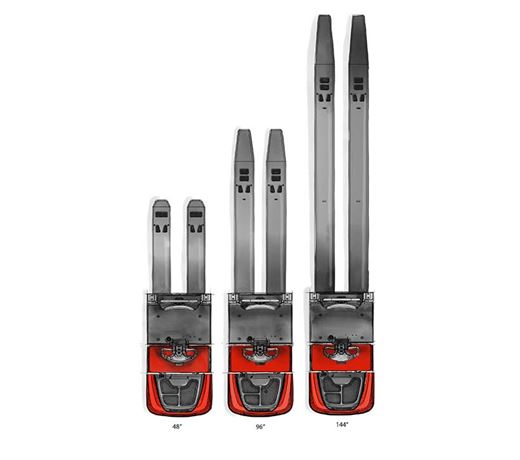

Multiple Fork Configurations
Available in single, double or triple lengths; and the only truck to offer 8,000 lb. capacity with triple fork lengths for increase productivity.Multiple Fork Configurations -

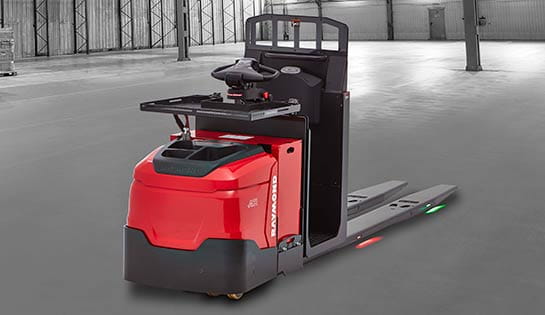

Pick2Pallet LED Light System
Designed to increase picking accuracy by using LED put-to-light technology which visually directs product placement when batch picking – reducing pick errors.Pick2Pallet LED Light System -

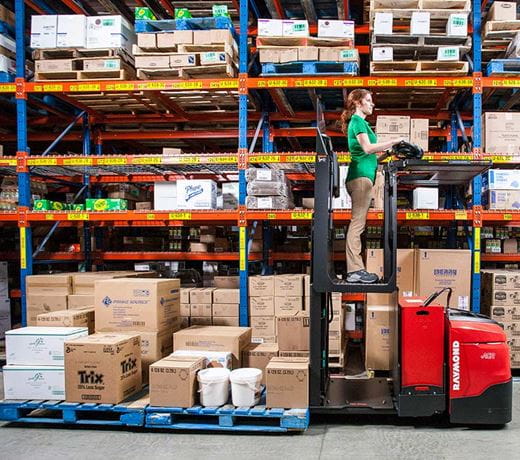

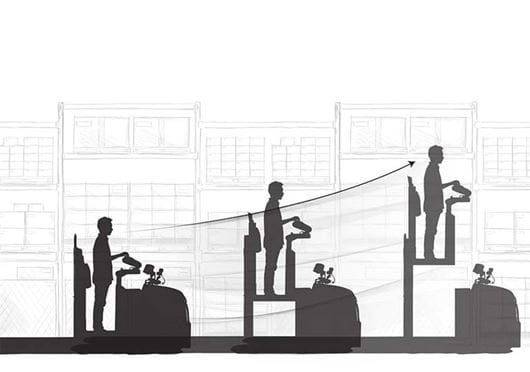

Simultaneous Lift/Lower and Travel
Allows the operator to travel at height or simultaneously lift or lower compartment between picks, reducing the need to stop the truck to lower or raise the compartment each time for greater productivity.Simultaneous Lift/Lower and Travel

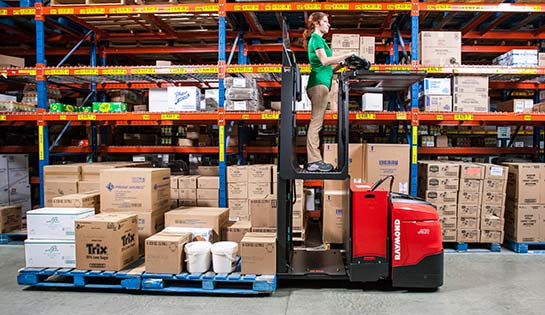

Strength and Performance Like No Other
The Raymond 8720 Low Level Order Picker pallet truck is raising expectations with a platform that elevates to 47" for comfortable access to load beams up to 100". With unrivaled durability and an exclusive design to handle the demands of the North American market, customers can optimize slot utilization and handle the ever growing SKU growth consumers demand.- Battery: 24 volt
- Capacity: 6,000 and 8,000 lbs.
- Fork Length: Single, Double and Triple Configurations
- Lift Height: 47"
- Operator Compartment: 21"
Built to Perform
-

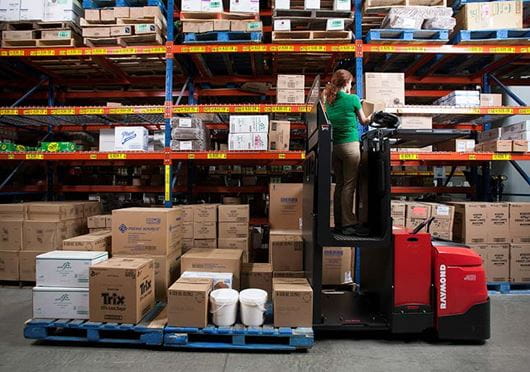

More Product Moved
The ACR System delivers longer battery life, precise speed control and faster acceleration between picks to help your operators pick more. -
Simultaneous Lift/Lower and Travel
Allows the operator to travel between picks at height or while lifting/lowering compartment without having to stop the truck to perform each function - saving time and increasing productivity. -

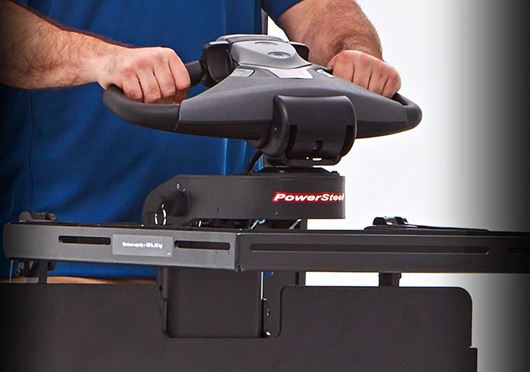

Improved Load Handling
PowerSteer reduces the effort to steer providing easier turning and automatically slows the truck when cornering.
-

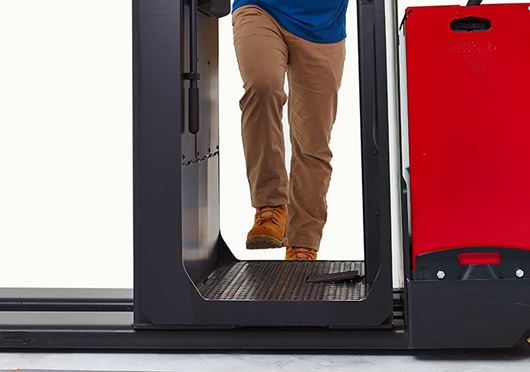

Spacious Step-through Compartment
21" step-through operator compartment allows access to either side of the pick aisle. -

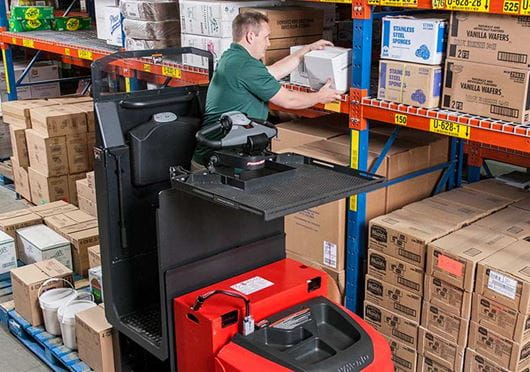

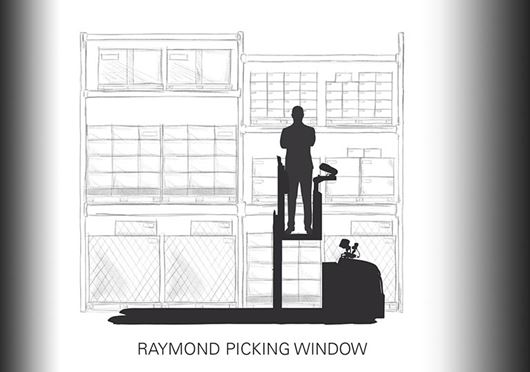

Wide Picking Window
47" lift height of operator compartment offers access to the second and in some cases third beam for greater accessibility. -
Easier Access to Product
Optional pick rake stored within the operator compartment helps provide selectors with easier access to product stored in the back of the pallet.
-
Heavy Duty Components
Ductile iron bell crank, stainless steel undercarriage pins and Lift and Go programmability - that enables travel speed to be reduced until forks are raised to a specific height - minimize wear. -

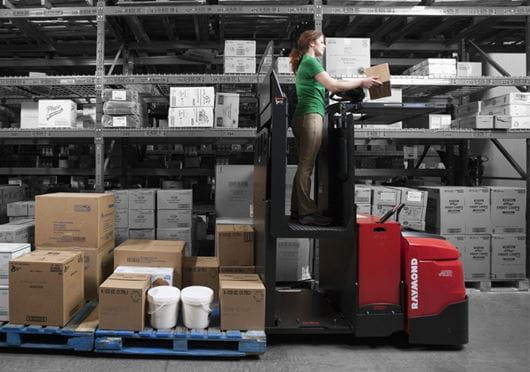

Even Weight Distribution
Dual Lift Cylinders distribute load weights evenly and increase stability and operator ride comfort. -

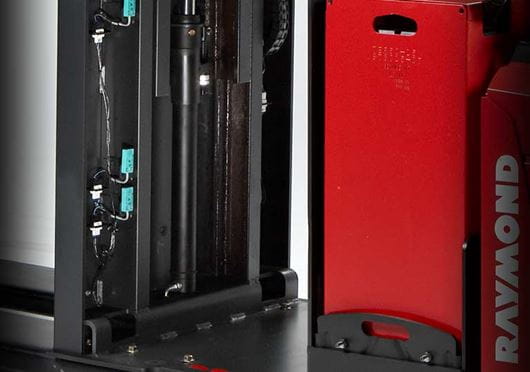

Protective, Durable Design
Heavy duty mast channel features the same proven design found on Raymond Orderpickers and bumper guard protects and extends component life.
-

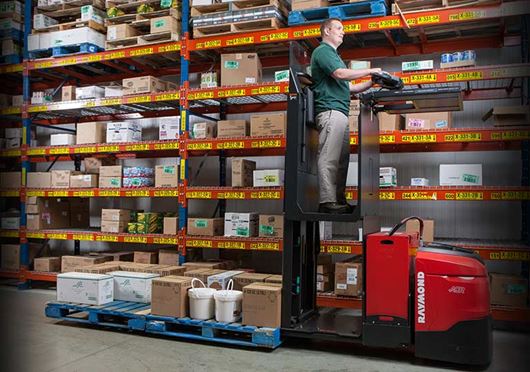

Increased Operator Confidence
Feather light hydraulics smoothly lift and lower the compartment, increasing operator comfort and productivity while a rock-solid stability design give operators confidence when operating at full speed at height. -

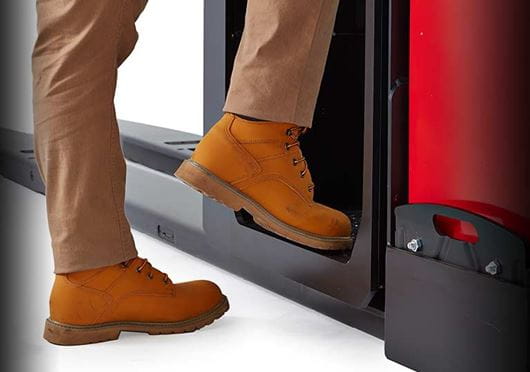

Comfort Throughout the Day
Operators appreciate the low step height into a spacious compartment with an adjustable height back rest pad that fits different operator sizes. -
Organized and Accessible Storage Area
Accessorized with a variety of options such as a storage area, storage tote, clipboard storage and powered accessory bar, providing the operator with the convenience to secure and power tools, paperwork and picked product.
-

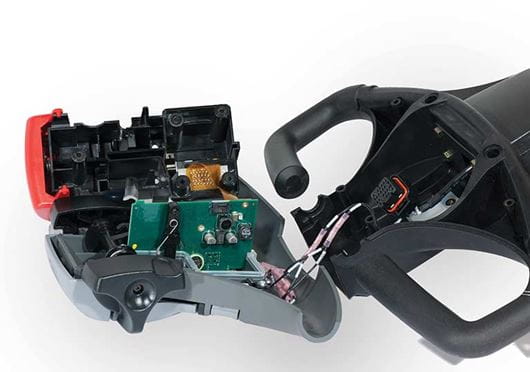

Reduced Downtime
CanBus technology reduces wiring, simplifying the time spent troubleshooting and maintenance. -

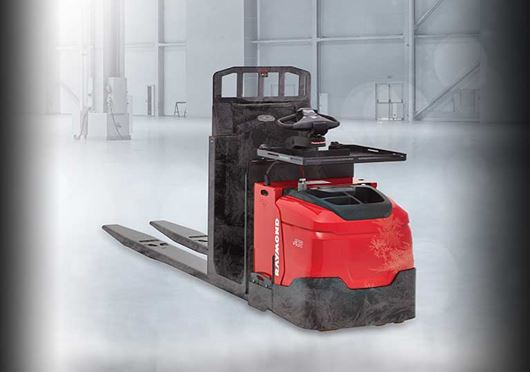

Reliable Performance
Equipped with IP65 protection to electronics and cold storage conditioning ensures reliability in harsh environments and in temperatures that run down to -20F. -

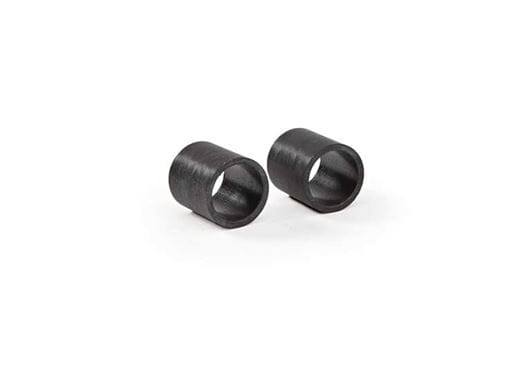

Longer Maintenance Intervals
500-hour service intervals with fewer maintenance points because of long-lasting corrosion-resistant components like composite bushings, that never require greasing and last 4-5x longer than steel bushings.
-

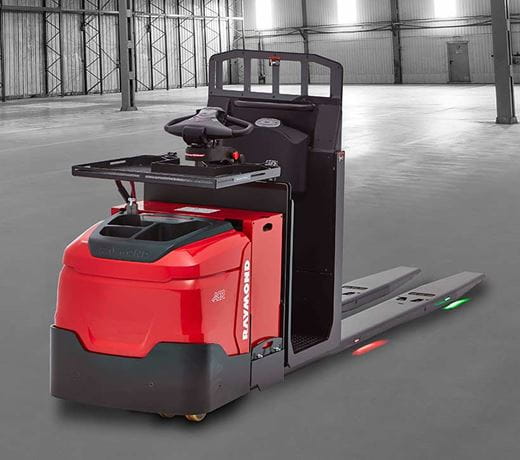

Pick2Pallet™ LED Light System
Boost productivity and direct operators to the desired customer pallet with the Pick2Pallet™ LED Light System. Offered exclusively by Raymond, Pick2Pallet is designed to help reduce picking errors by using LED technology to visually reinforce product placement for order fulfillment in batch picking applications. -

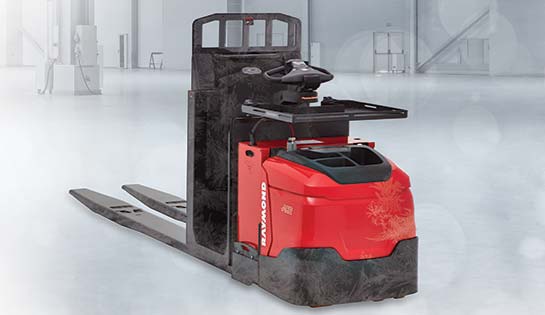

Cold Storage Conditioning Package
Protects sensitive lift truck controls systems with hydraulic, mechanical, and electrical components that are matched to different temperature levels to assure peak performance and productivity. -

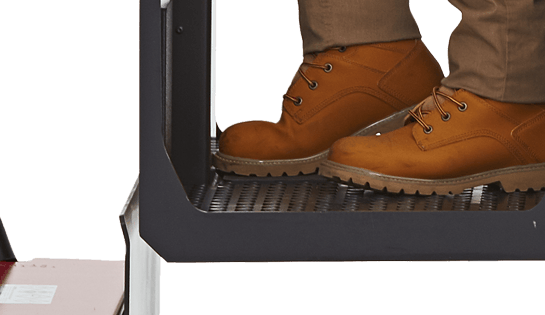

Hands-free Lowering
Hands-free lowering allows the operator to lower the compartment without having to set cases down. The operator can activate lowering the compartment through a foot pedal, centered on the floor of the compartment, for faster more flexible order picking. -

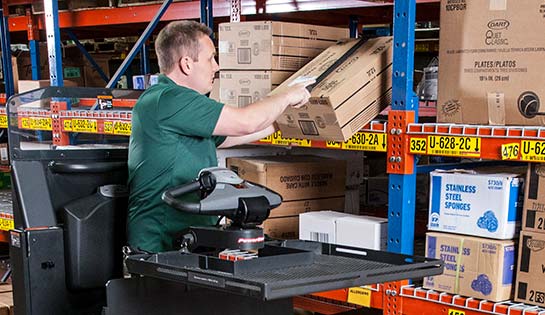

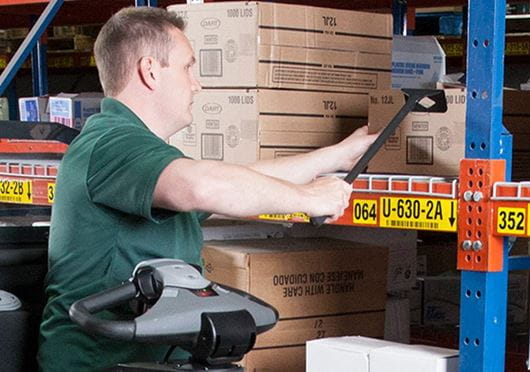

Pick Rake
Designed to give order selectors greater reach and superior stability, Raymond’s unique pick rake offers faster, easier access to higher SKU’s and items toward the back of a pallet. By minimizing awkward reaching, stretching and leaning, the pick rake allows operators to work more comfortably, confidently and productively. -

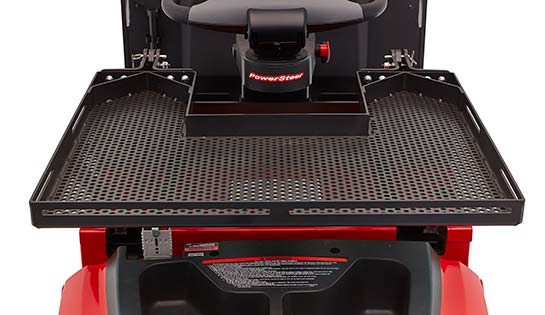

Storage Tray
A large and sturdy storage tray provides a convenient method to place picked product without having to lower the compartment between picks. -
Travel at Height
Travel at height enables the operator to travel from pick-to-pick while the compartment is elevated – avoiding the need of having to lower and lift again between picks for faster, more efficient order picking. -
Rear Controls
Easily accessed on the operator backrest, and ergonomically contoured to enhance operator productivity when traveling in the forks first direction. -
Operator Compartment Sensor System (OCSS)
The Operator Compartment Sensor System (OCSS) helps reinforce the need for operators to assume and maintain a proper operating position. Different configuration settings are available depending on the task at hand. For example, the OCSS will restrict travel if an operator has not assumed the proper riding operating position or is not alternatively configured so that the operator may assume either the orderpicking position outside of the truck or in the riding position.
-
Low Level Order Picking
Boost throughput and pick rates with reliable, high-performance Raymond electric pallet jacks. We can customize our vast selection of pallet trucks, including fork length, width and a variety of options, to enhance efficiency in order picking applications. Let us customize a solution for you — from low and floor-level rider pallet trucks for order picking and truck loading and virtually everything in between.
-
Horizontal Transport
Applications should not burden a truck with extensive capability to only transport horizontally. Pallet jacks are a cost-effective method for horizontal transport where stacking is not required. Pallet trucks offer order picking functionality, are available in various fork lengths to maximize productivity, and offer a wide variety of operating positions to enhance operator comfort and minimize fatigue.
-
Cold Storage Environments
Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions — to test and prove our systems in extreme cycles of freezing and thawing.
-
UL EE Applications
This lift truck complies with Underwriters Laboratories (UL) 583. Raymond Type E and EE trucks are UL-tested and UL-certified and designed and manufactured to operate in classified locations as defined in the National Fire Protection Association's NFPA 505.
-
