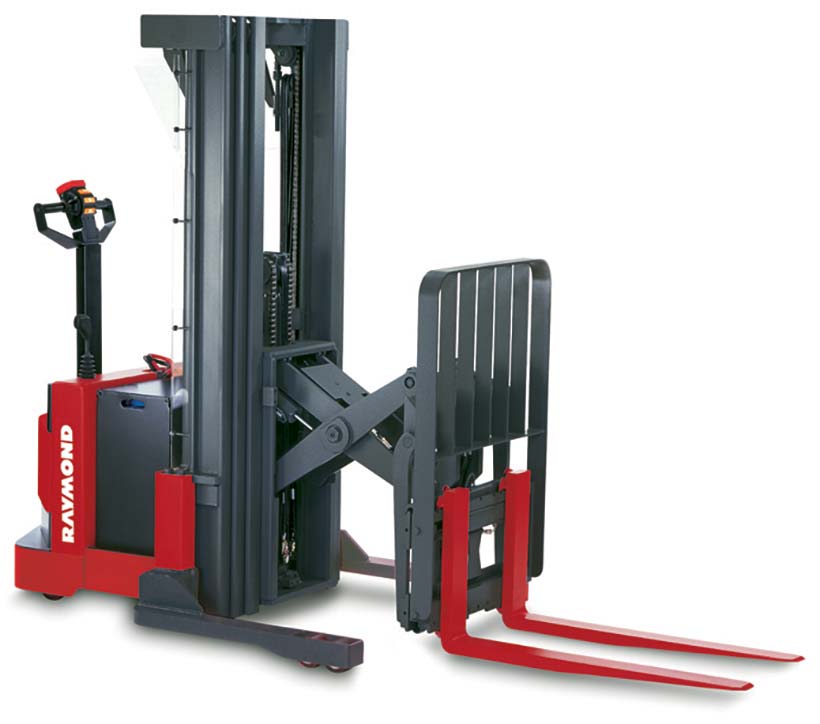

RRS 30 Walkie Reach Stacker Pallet Stacker Truck
-
-

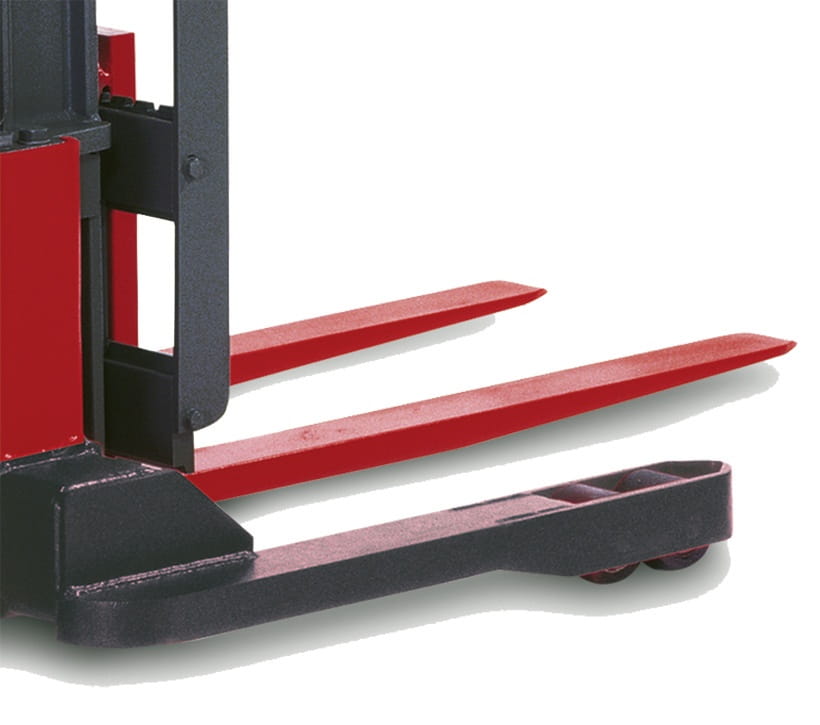

Fixed Baselegs
Sturdy fixed baselegs provide added stability to help handle hefty loads.Fixed Baselegs -
Impressive Handling Features
Standard load sensing torsion bar suspension allows for easier steering.Impressive Handling Features -

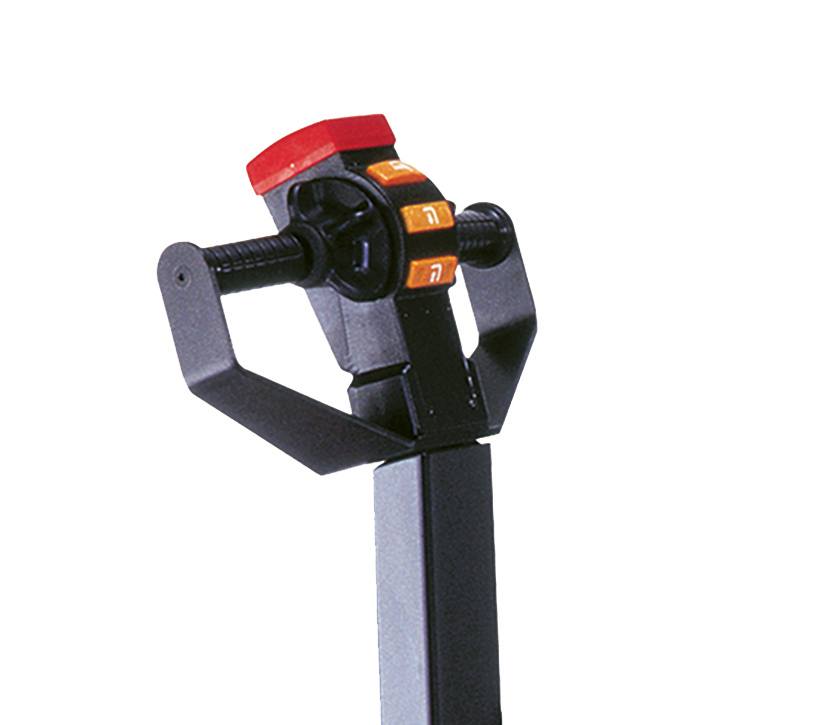

Lift/Lower Controls
The contoured handle provides electric lift/lower switches for simple, reliable control during travel.Lift/Lower Controls -
Onboard Diagnostics
Provide self-checking capabilities for simplified troubleshooting.Onboard Diagnostics -

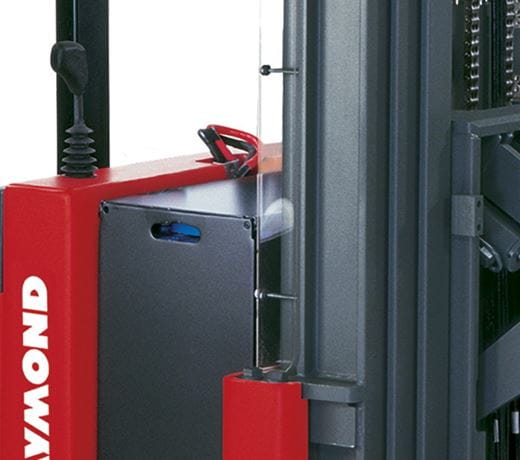

Secondary Controls
Secondary Lift/Lower controls are located on the chassis for more precise load placement.Secondary Controls
Maximum Muscle And High Precision Delivered Economically
With the Raymond RRS walkie reach pallet stacker, do the job in less time for less money. This highly maneuverable pallet stacker is the perfect vehicle for retail storage areas, weight restricted elevators and floors, and other specialized operations. Trust the versatile RRS walkie reach to accomplish all of your staging and dock-to-stock needs.
- Battery: 24 volt
- Capacity: 3,000 lbs
- Elevated Height: 189" maximum
- Loaded Travel Speed: 2.8 mph
- Unloaded Travel Speed: 3.2 mph
-
Battery Discharge Indicator
The Battery Discharge Indicator with Lift Interrupt and Hour Meter prevents damage to the motor's electrical components caused by over-discharging the truck's battery. -

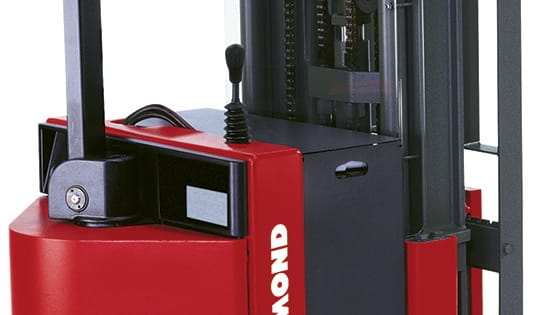

Valve and Hose Package
For applications with unique handling needs, the Auxiliary Hydraulic Function Valve and Hose Package provides additional function for custom handling in addition to lift/lower, tilt and sideshift. -

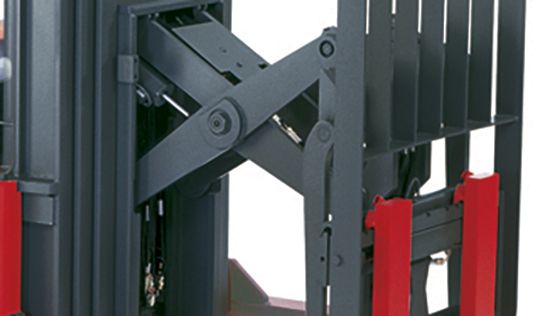

Sideshift
The sideshift function provides sideways movement of the carriage permitting a load to be picked up or put away even if it is not perfectly aligned with the truck. -

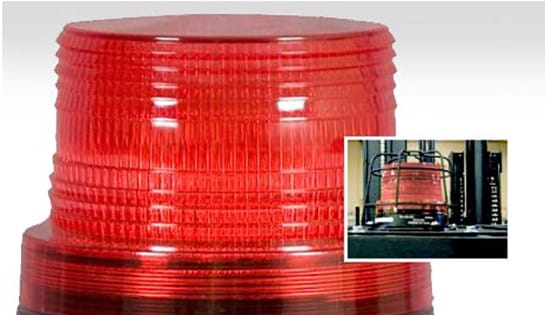

Warning Lights
The RSS Walkie Straddle Stacker is designed to provide excellent visibility and is equipped with a horn as standard equipment. However, environments with high levels of ambient noise may find it difficult to hear the horn when sounded. The warning light option may assist in making other workers aware of the RSS stacker truck in use.
-
Cold Storage
Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions; testing and proving our systems in extreme cycles of freezing and thawing.
-
Narrow Aisle
With multiple combinations of heights, features and capacities, Raymond RRS walkie reach stackers provide narrow aisle storage with superior versatility to improve the utilization of your warehouse space.
-
Palletless Handling
Whether you are moving carpeting, steel, or other palletless loads, Raymond has the answer. The Raymond RRS walkie reach pallet stacker trucks are ideal options to maximize space utilization, decrease damage to inventory and increase productivity with palletless handling.
-
UL EE Applications
This lift truck complies with Underwriters Laboratories (UL) 583. Raymond Type E and EE trucks are designed and manufactured to operate in classified locations as defined in NFPA 505. Type E and EE products are tested and certified by Underwriters Laboratories (UL).
-
