RSS 22/30/40 Walkie Straddle Stacker Pallet Stacker

  • Raymond Walkie Straddle Stacker
  • Raymond RSS walkie straddle stacker handle
    Raymond engineers productive lift trucks

    Lift/Lower Controls

    The contoured handle provides electric lift/lower switches for simple, reliable control during travel.
    Lift/Lower Controls

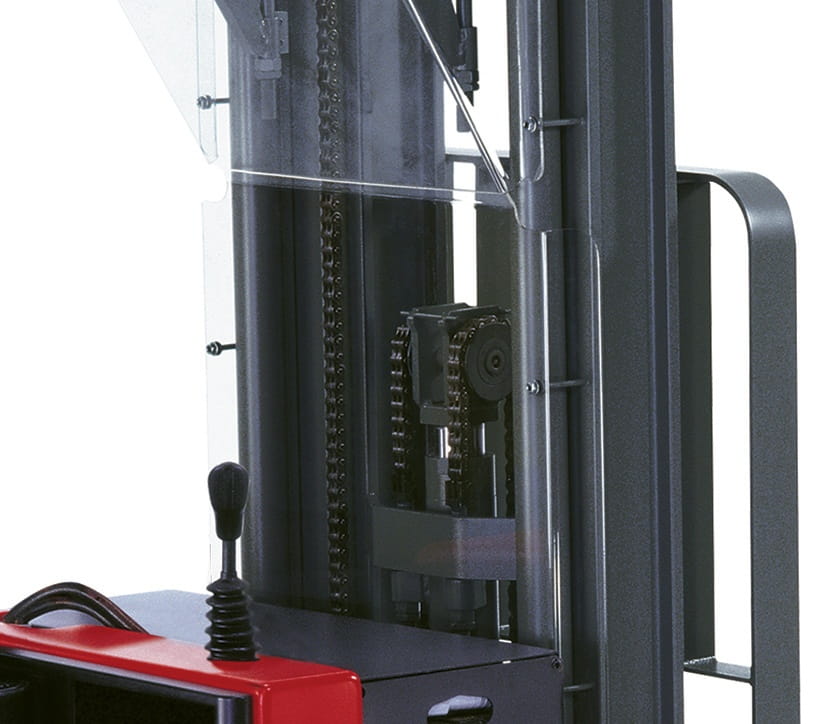

  • Raymond RSS mast options
    Raymond lift trucks provide versatile material handling solutions

    Mast Configurations

    Choose from two or three stage masts to meet your application needs.
    Mast Configurations

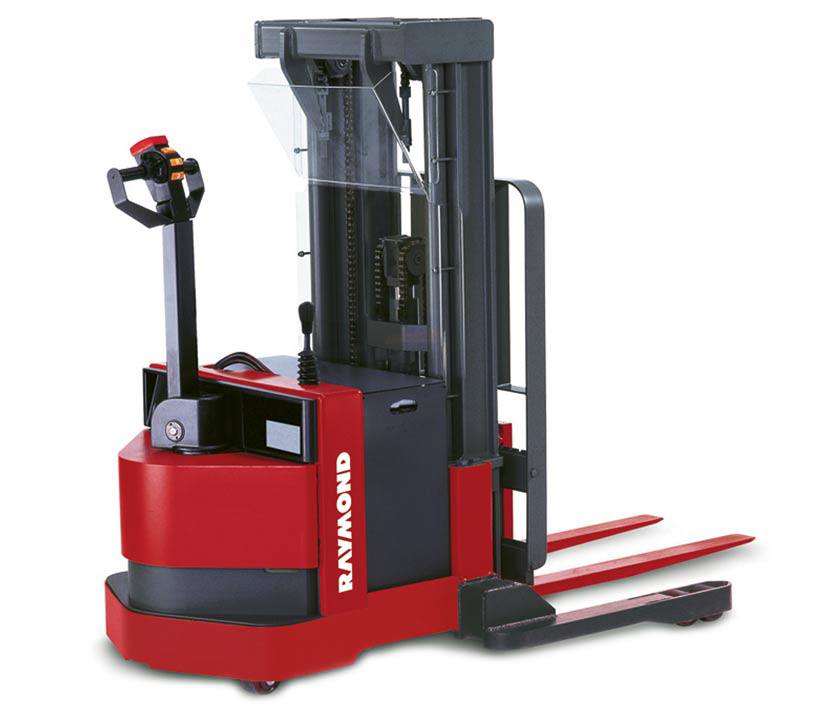

  • Raymond RSS Walkie Straddle Stacker
    Raymond lift trucks are designed for ease of maintenance

    Onboard Diagnostics

    Provide self-checking capabilities for simplified troubleshooting.
    Onboard Diagnostics

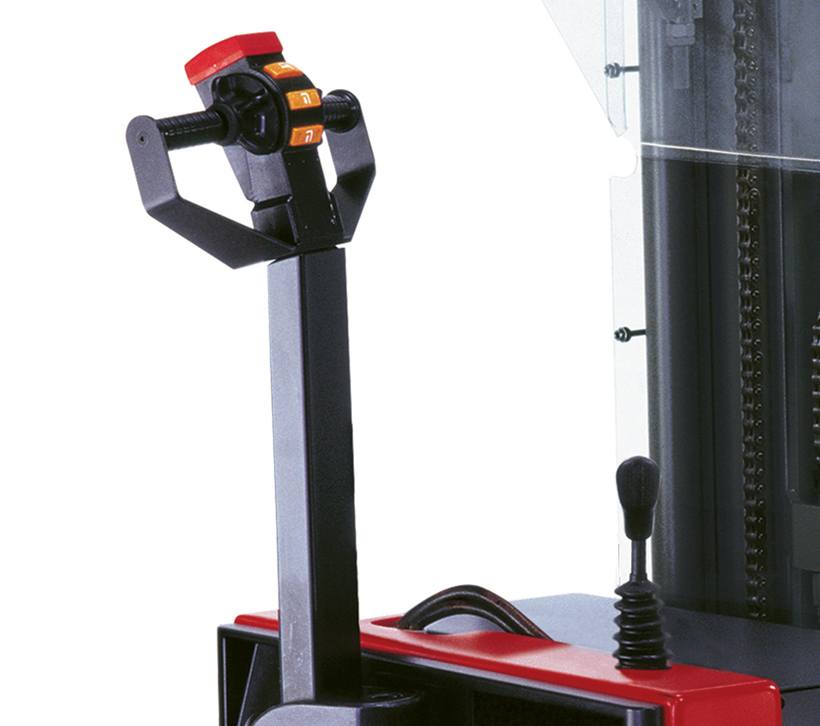

  • Raymond RSS walkie straddle stacker secondary lift lower controls
    Raymond engineers productive lift trucks

    Secondary Controls

    Secondary Lift/Lower controls are located on the chassis for more precise load placement.
    Secondary Controls

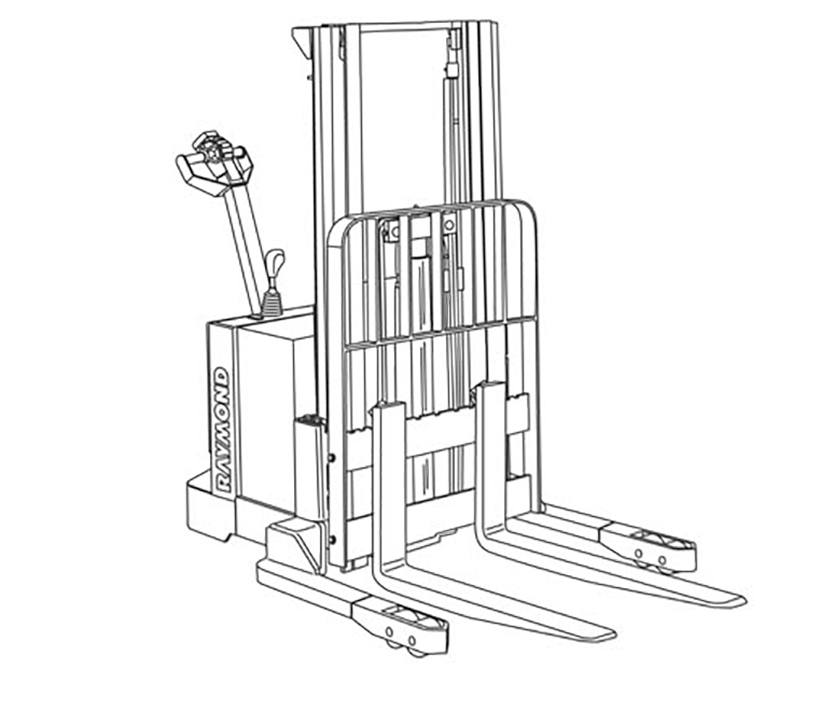

  • Raymond RSS Walkie Straddle Stacker Baselegs
    Raymond durable lift trucks

    Fixed Baselegs

    Sturdy fixed baselegs provide added stability to help handle hefty loads.
    Fixed Baselegs

The Power You Need. The Precision You Want.

With the Raymond RSS 22/30/40 walkie straddle stacker trucks, you can save valuable cycle time with drive-in-access to pallets and easy-to-operate controls. A load-sensing torsion bar suspension provides easier steering, and modular components and robust construction ensure your walkie pallet stacker will stand up to years of use.

  • Battery: 24 volt
  • Capacity: 2,200 lbs, 3,000 lbs, 4,000 lbs
  • Elevated Height: 189" maximum
  • Loaded Travel Speed: 2.8 mph, 2.9 mph and 3.0 mph
  • Unloaded Travel Speed: 3.2 mph and 3.3 mph

  • Raymond walkie stackers battery discharge indicator

    Battery Discharge Indicator

    The Battery Discharge Indicator with Lift Interrupt and Hour Meter prevents damage to the motor's electrical components caused by over-discharging the truck's battery.
  • Raymond walkie stackers auxiliary cable and hose package

    Valve and Hose Package

    For applications with unique handling needs, the Auxiliary Hydraulic Function Valve and Hose Package provides additional function for custom handling in addition to lift/lower, tilt and sideshift.
  • Raymond walkie stackers optional sideshift feature

    Sideshift

    The sideshift function provides sideways movement of the carriage permitting a load to be picked up or put away even if it is not perfectly aligned with the truck.
  • Raymond walkie stackers optional warning light

    Warning Lights

    The RSS Walkie Straddle Stacker is designed to provide excellent visibility and is equipped with a horn as standard equipment. However, environments with high levels of ambient noise may find it difficult to hear the horn when sounded. The warning light option may assist in making other workers aware of the RSS stacker truck in use.

  • Cold Storage

    Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions; testing and proving our systems in extreme cycles of freezing and thawing.

  • Narrow Aisle

    With multiple combinations of heights, features and capacities, Raymond RSS walkie straddle stacker trucks provide narrow aisle storage with superior versatility to improve the utilization of your warehouse space.

  • Palletless Handling

    Whether you are moving carpeting, steel, or other palletless loads, Raymond has the answer. The Raymond RSS 22/30/40 walkie pallet stacker trucks are ideal options to maximize space utilization, decrease damage to inventory and increase productivity with palletless handling.
