9600 Swing-Reach Truck Turret Forklift
-
-

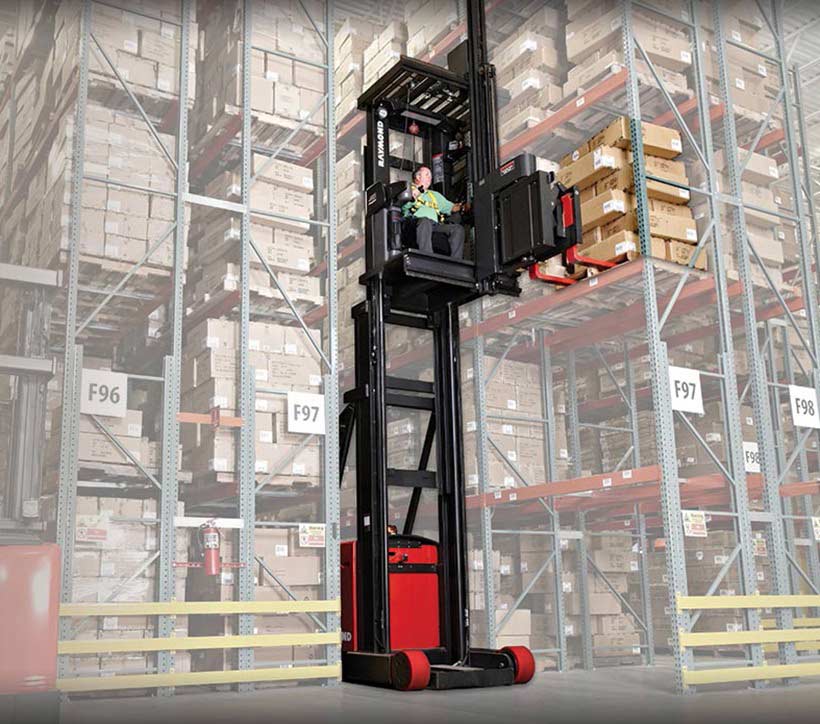

Pantograph Design
Reach-Fork pantograph design and standard 4” x 1.75” forks allow for long side handling of double-sided pallets.Pantograph Design -

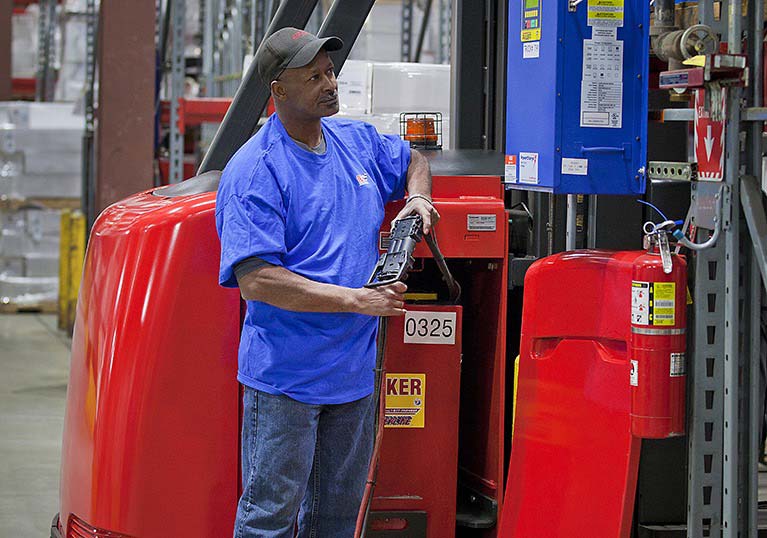

Regenerative Lowering
Creates power by returning energy to the battery when the truck is lowering its load, resulting in fewer battery changes and reduced downtime.Regenerative Lowering -
Exclusive intellispeed

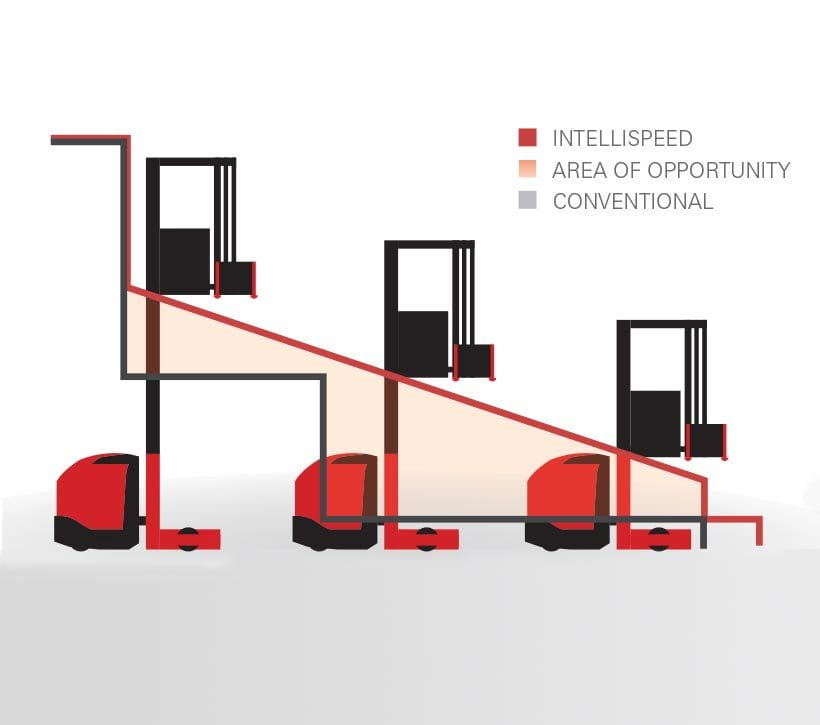

Optimizes truck speed at elevations over a full range of heights and load weight conditions.Exclusive intellispeed -

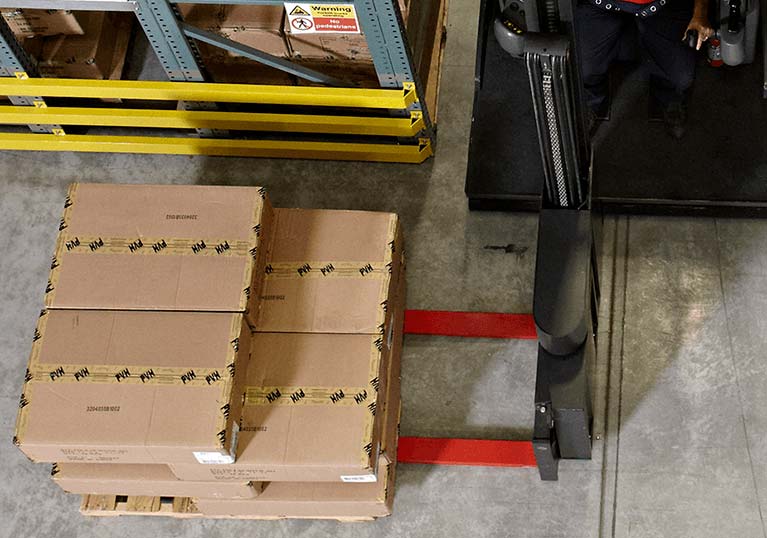

Auto Traverse and Rotate
Improves productivity and reduces product damage by automatically synchronizing the traverse and rotate movements to keep forks within the aisle.Auto Traverse and Rotate -

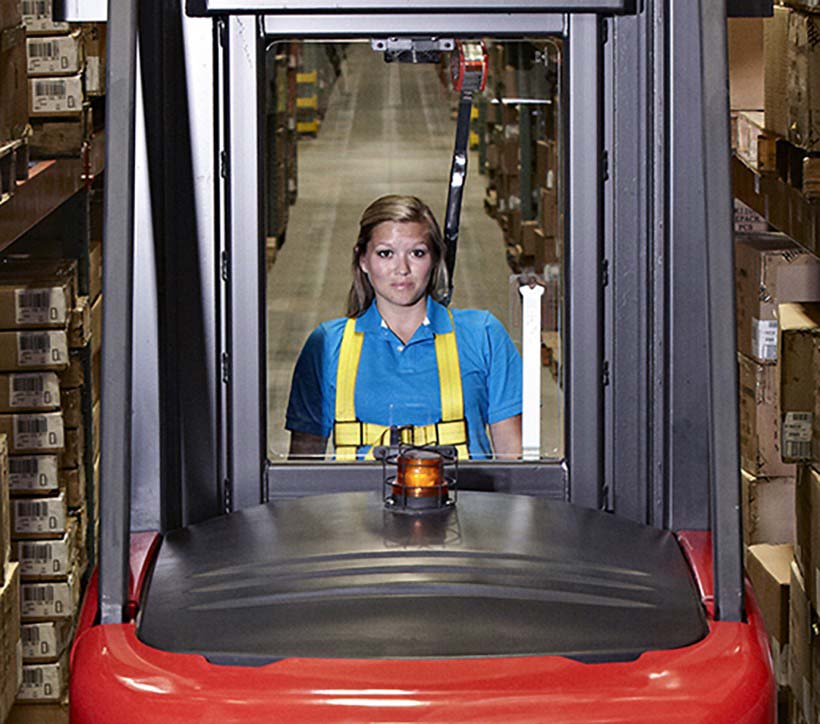

Unmatched Visibility
The open view, twin tubular mast design offers the only unobstructed visibility of any Swing-Reach truck in the industry.Unmatched Visibility
Superior Versatility and Performance
The Raymond 9600 Swing-Reach® turret truck provides case picking and high-level pallet handling versatility in very narrow aisle applications. The 9600 turret forklift allows you to maximize your storage capacity with an advanced solution that delivers a significant cost savings to your operations.- Battery: 48 volt
- Battery Compartment: 21"
- Capacity: 3,000 lbs
- Elevated Height: 394" plus
A Turret Truck Forklift Built to Perform
-
ACR System
Provides quicker acceleration and electronic braking, faster lift and lower speeds, and smoother direction changes for more efficient load handling and movement in very narrow aisles. -

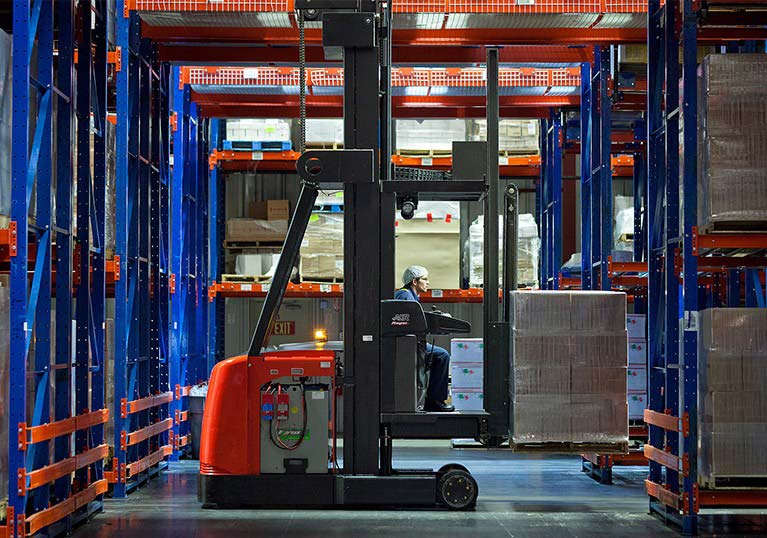

Proven Energy Efficiency
Third-party testing demonstrated that the Raymond 9600 Swing-Reach truck uses 40% less energy than competing models, providing a considerable energy cost savings and extending battery life through a shift. -
Regenerative Lowering
This combination of superior control and AC technology results in fast, smoother performance and creates power when lowering its load by returning 10% of amps back to the battery for reduced energy consumption and increased uptime.
-
Load Control
Operators will have better control of the load and be more efficient with fine positioning and control of the lift, travel and load handling functions. -

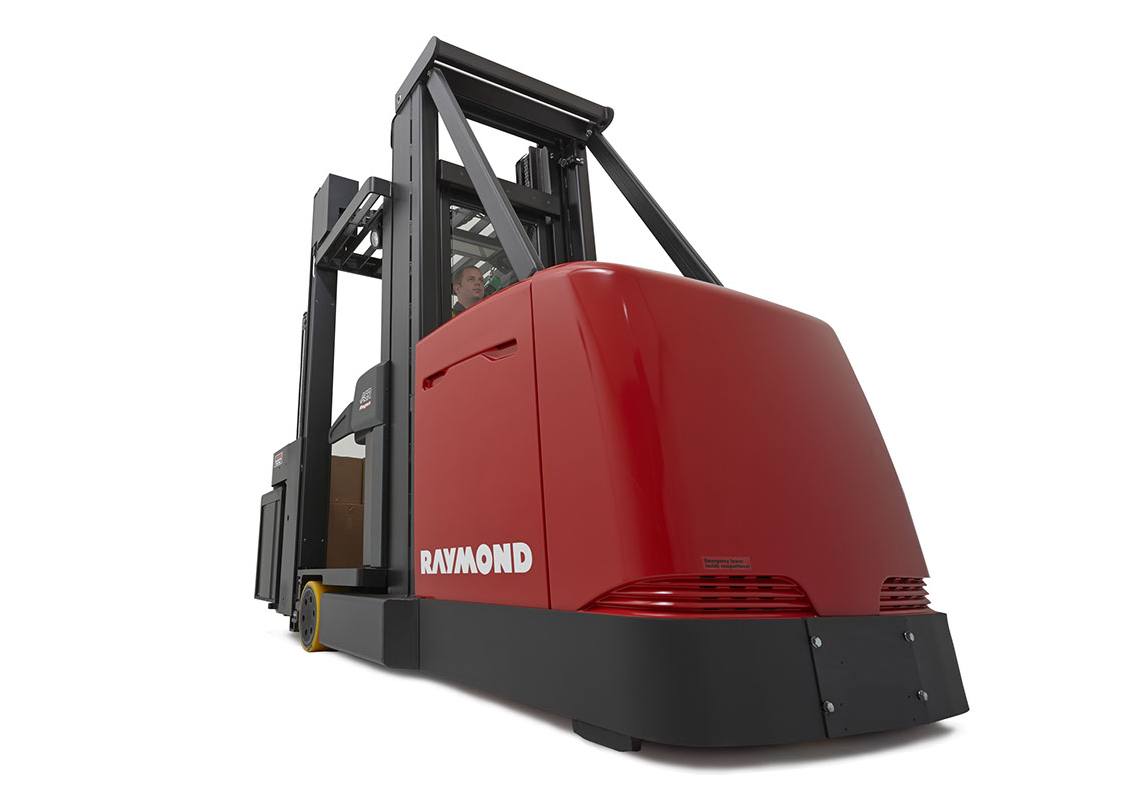

Three Wheel Design
Provides stability and operator confidence at height. Increased stability without the need for additional counterweight keeps your Raymond turret truck in the aisle working instead of at the battery charger. -

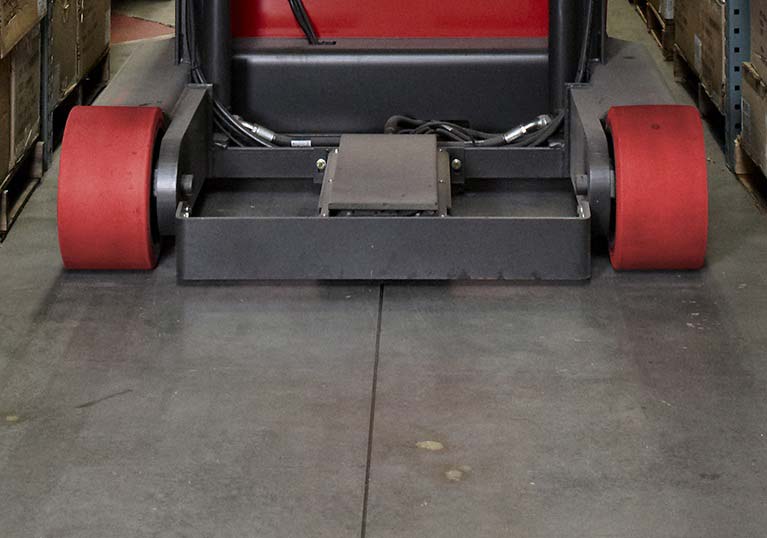

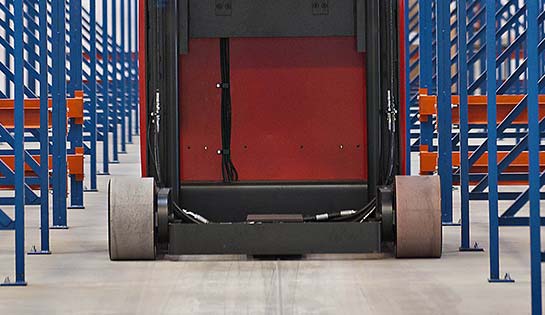

Wire Guidance and intelliguide
Increase truck speed, storage capacity and operator performance without the need for adjustment. Raymond Swing-Reach trucks engage the guide wire quickly and easily, and the no-tune intelliguide system offers excellent tracking and stability.
-

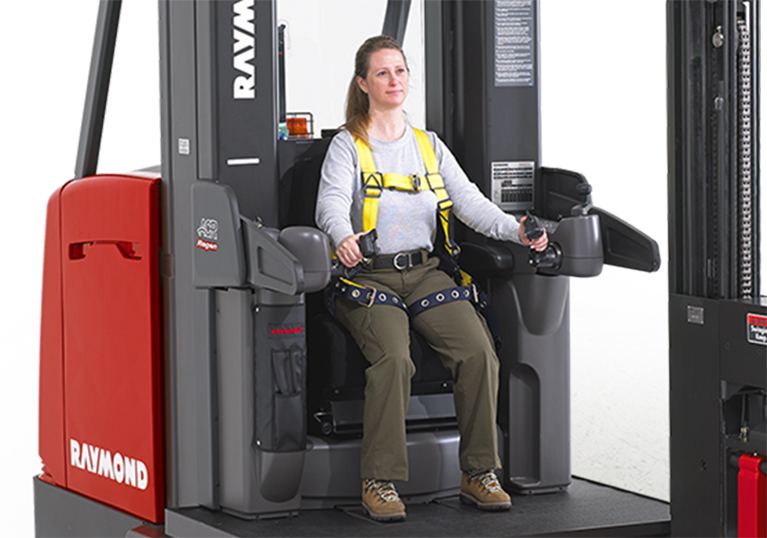

Comfortable Operator Compartment
Roominess is achieved by placing the operator between the mast uprights. The low 16 inch step height allows easier entry into the operator compartment. The light and fan package provide efficient lighting and air circulation at higher heights. -
Display and Controls
The vehicle navigation assistant display allows operators to easily view important information about the truck and load. An intuitive operator interface and control handles allow effortless, simultaneous control of truck functions. -

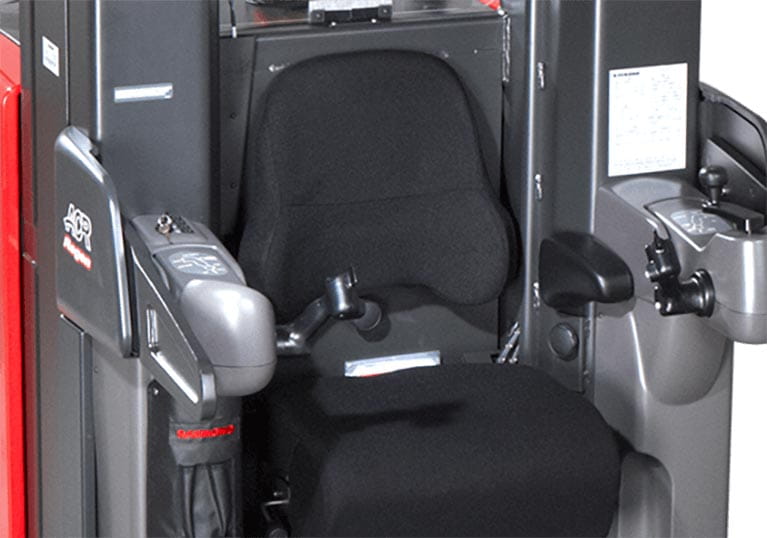

Fully Adjustable Contoured Seat

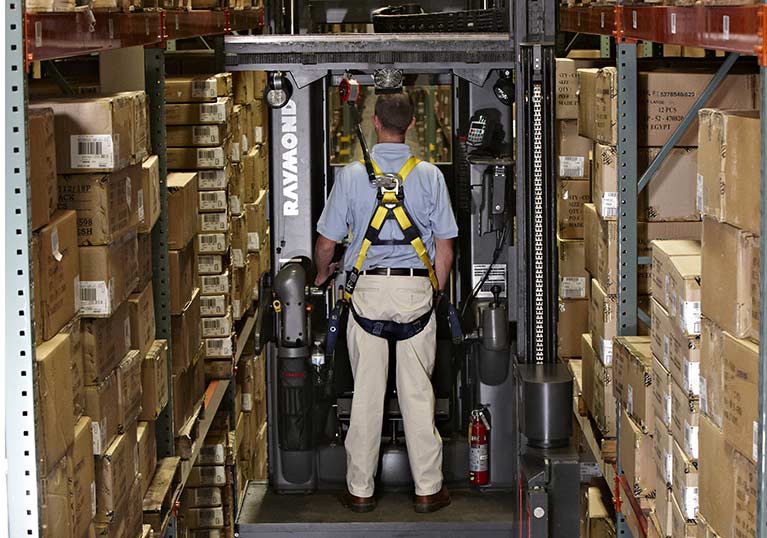

Reduces much of the stress on operators that can lead to operator fatigue. Along with armrests and lumbar support, the control center adapts to each operator’s preferences.The swivel seat provides excellent visibility through the open view mast when traveling in the tractor first direction.
-

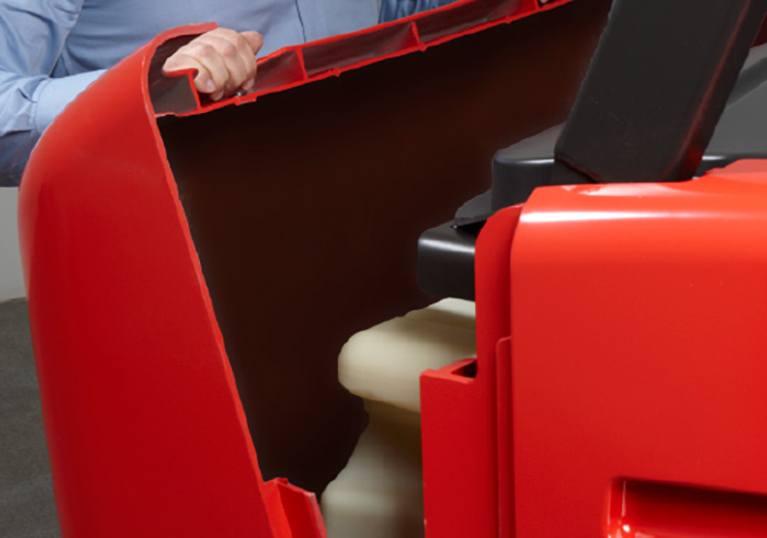

Ease of Access
The durable cover allows for convenient access to all components for service, and the intuitive controls and layout of components allow for ease of service and reduced time to repair. -
Fewer Components
The ACR System provides ease of maintenance with fewer components to service and replace over competing AC motors. -
Parts Commonality

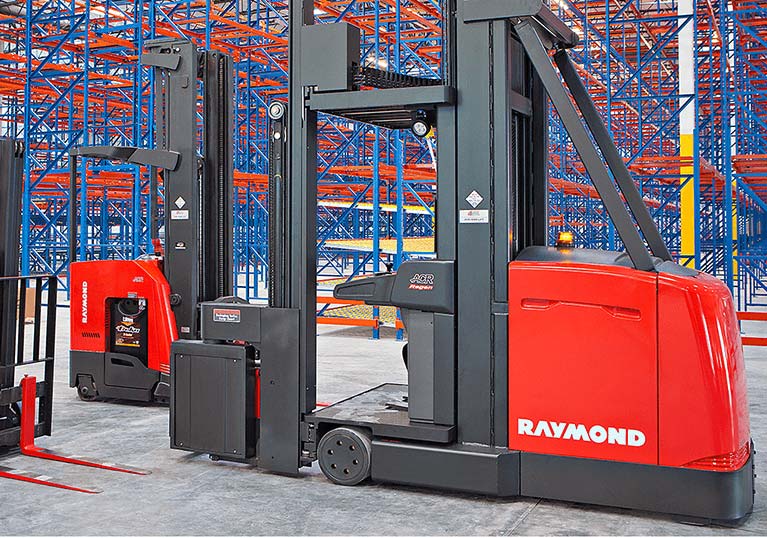

Raymond Swing-Reach turret trucks share parts commonality with our reach trucks and order pickers, to reduce parts stocking requirements and further simplify service.
-
Auxiliary Mast
Can be raised to the most ergonomically advantageous height. -

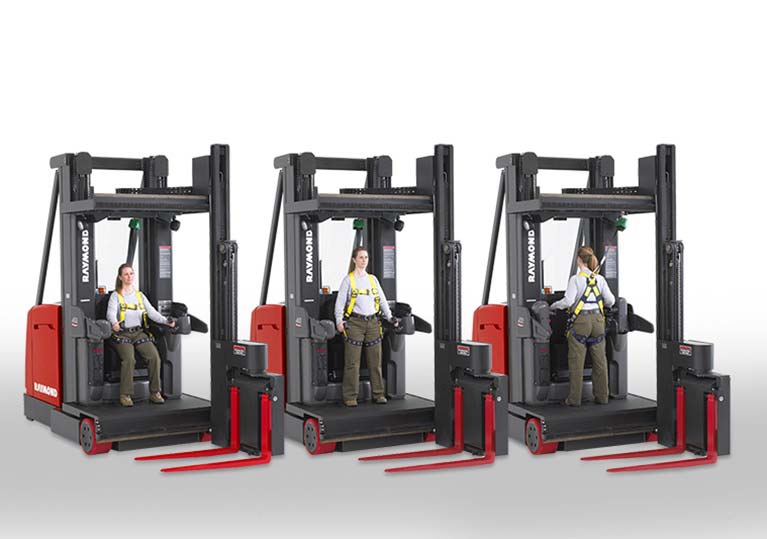

Three Driving Positions
Operate standing, seated or leaning for operator comfort and postural relief throughout the course of a shift. In case picking applications, the control arms and sidegates can be raised to create a generous picking window. -
Aisle and Load Widths
The 9600 turret truck can be outfitted to accommodate a wide range of aisle widths and oversized loads – up to 48” deep by 108” wide, in aisles as narrow as 66”.
-

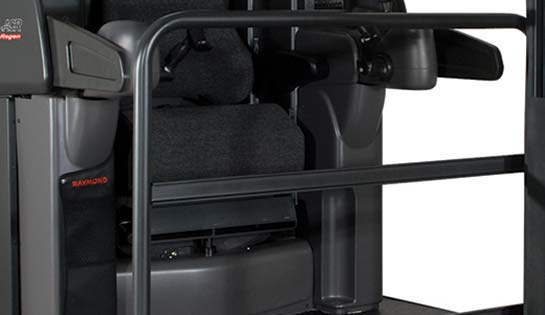

Pallet Handling Unit Platform Barrier
May be added to enhance an operator’s feeling of security at elevated heights. The barrier comes in two different configurations, wide or narrow barrier. -
Cold Storage Conditioning
Equip your Raymond turret trucks with a cold storage conditioning package to protect sensitive control systems and assure peak performance in refrigerated warehouses and freezer applications. -
intelliguide Wire Guidance
Automatically steers in wire guided applications, freeing operators to concentrate on picking. -

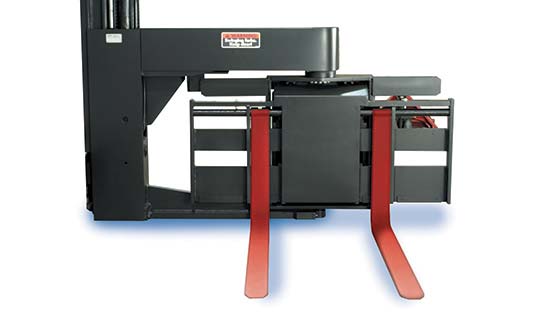

Extended Load Handling
Place, pick and move a variety of load sizes – up to 48″ deep by 108″ wide in aisles as narrow as 68". -
Sidegate Power Disconnect Switch

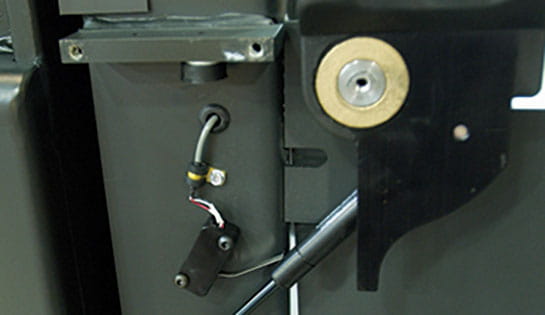

A customer may determine that it is necessary for the flip-down sidegate to always be lowered during operation, for example to ensure uniformity of a multi-manufacturer fleet. This feature prevents lift, lower, travel and load handling if the sidegate is not in the lowered position. -
End of Aisle Slowdown

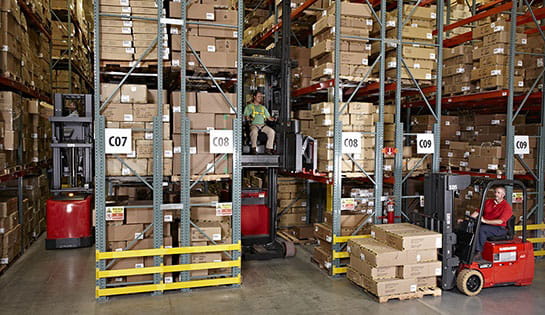

Magnets buried in the floor reduce the truck’s speed at the end of the aisle, aiding the operator in stopping prior to exiting the aisle.
-
Cold Storage

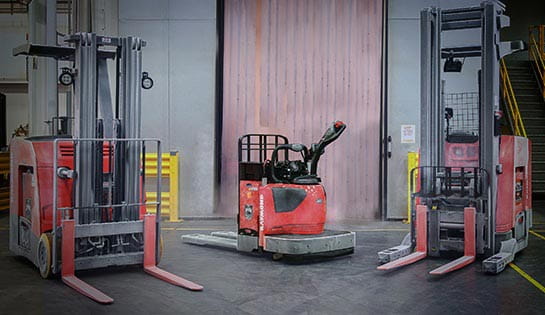

Refrigerated warehouses, blast freezers, and other cold storage facilities require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions; testing and proving our systems in extreme cycles of freezing and thawing. Raymond Swing-Reach trucks can be equipped with cold storage conditioning and heated cab options to enhance operator comfort in cold storage warehouses.
-
High Level Order Picking
Boost throughput and pick rates with reliable, high performance Raymond Swing-Reach turret trucks. Lifting greater capacities to higher heights means greater order picking productivity for your operators. And, we can customize our vast selection of turret trucks, including lift heights and performance packages to meet very narrow aisle needs and order picking requirements.
-
UL EE
The Raymond 9600 Swing-Reach turret truck complies with Underwriters Laboratories (UL) 583. Raymond Type E and EE trucks are designed and manufactured to operate in classified locations as defined in NFPA 505. Type E and EE products are tested and certified by Underwriters Laboratories (UL).
-
Very Narrow Aisle
With over 200 combinations of heights, features and capacities, Raymond's family of very narrow aisle forklifts and swing reach trucks offer superior versatility and effective solutions, each improving the utilization of your warehouse space.
-
